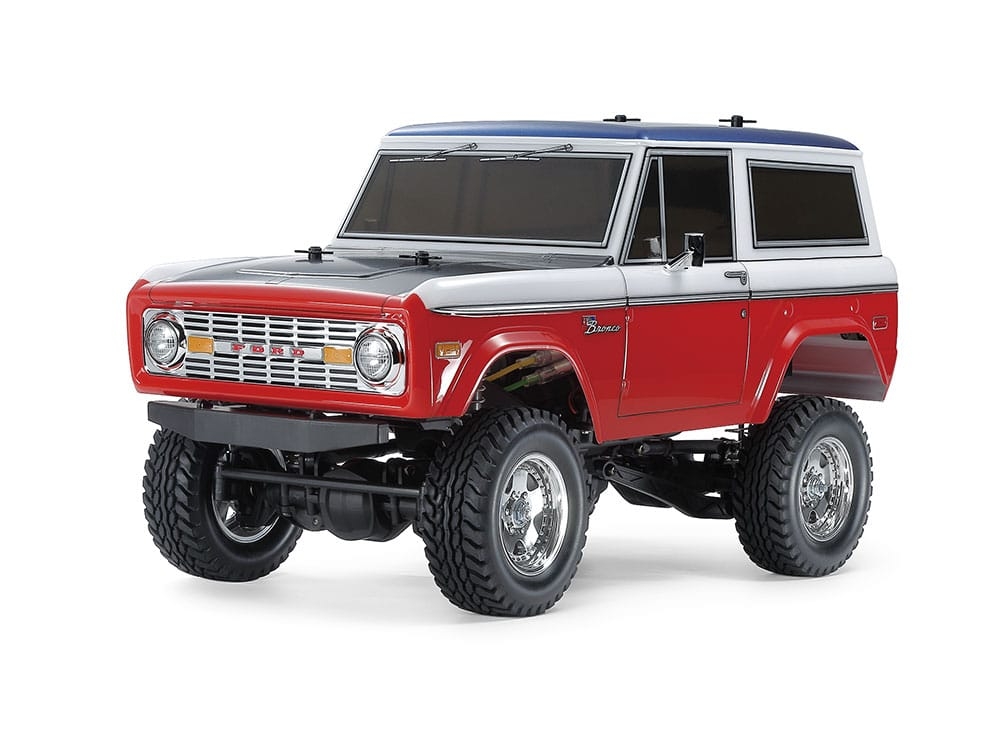

RC byggesett fra Tamiya av Ford Baja Bronco 1973. Modellen kommer i skala 1/10 og er på Cross Country 2 (CC-02) chassiset som har firehjulsdrift og takler de aller fleste overflater og terreng. Karosseriet er i holdbart polykarbonat. Modellen leveres med en kraftig 540 børstemotor og en LED-lys pakke for ekstra realisme.
Behøves utenom som ikke er inkludert:
2-kanals fjernkontroll og mottaker
7.2V Ni-Mh batteripakke og lader
Styreservo
Fartsregulator
Hurtiglim
Lakk/maling til bodyen
Spesifikasjoner:
RC byggesett
Skala 1/10
Lengde: 39,5 cm
Bredde: 19,6 cm
Høyde: 21,5 cm
Chassis type: CC-02
Terreng: All-terrain
Drift: 4WD firehjulsdrift
LED-lyspakke (inkludert)
Motor: Type 540 Børstemotor (inkludert)
Forseglet differensial foran og bak
Karosseri: Gjennomsiktig polykarbonat
Lakk/maling anbefalt av Tamiya:
PS-1 White
PS-16 Metallic Blue
PS-34 Bright Red
Informasjon fra Tamiya:

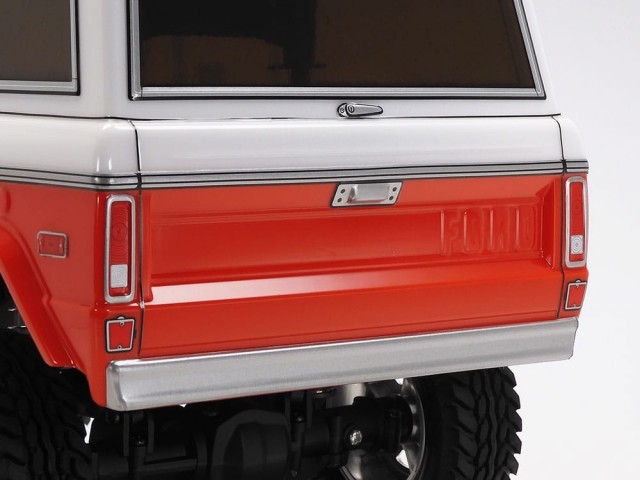

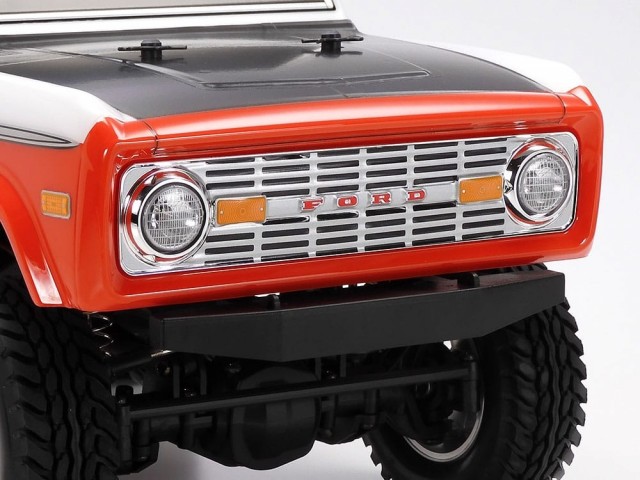

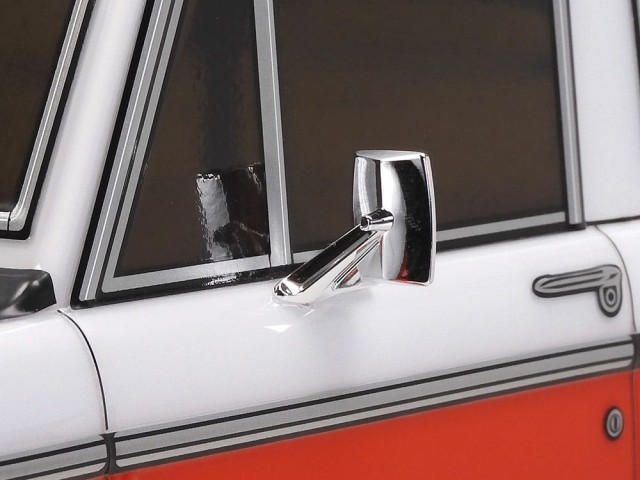

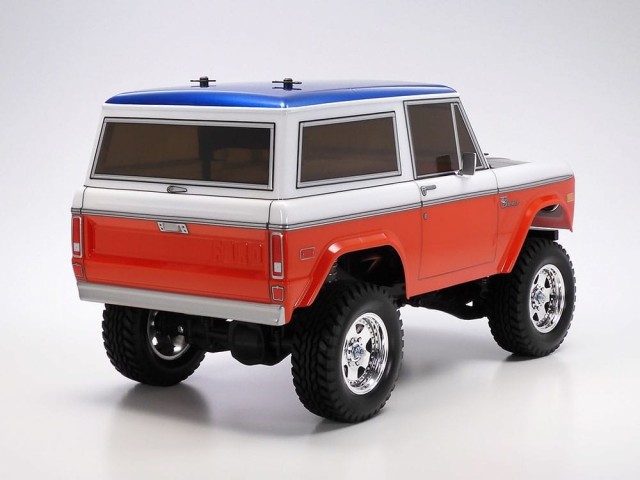

The first generation Ford Bronco was relatively compact and extremely capable off-road, and this 4WD car joined numerous races. This R/C model assembly kit recreates the Baja Bronco, which was sold from 1971 to 1975 to commemorate victory in a major desert race. Its polycarbonate body captures the 1973 Bronco form in style, with a black sticker to use on the engine hood, and plated parts for the front grille, light covers and side mirrors.
CC-02 Chassis - Off Road, Evolved

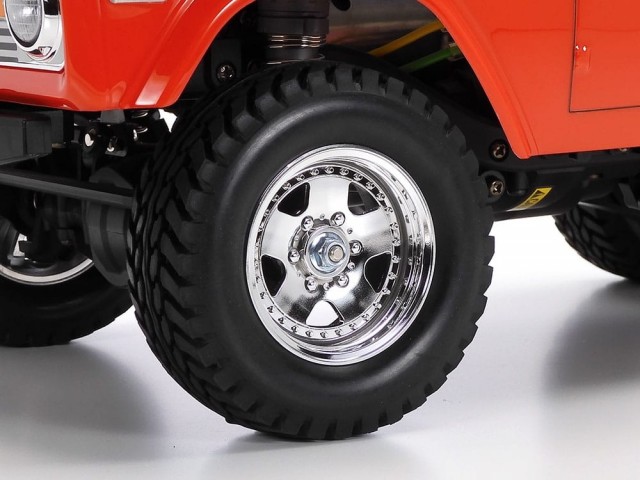

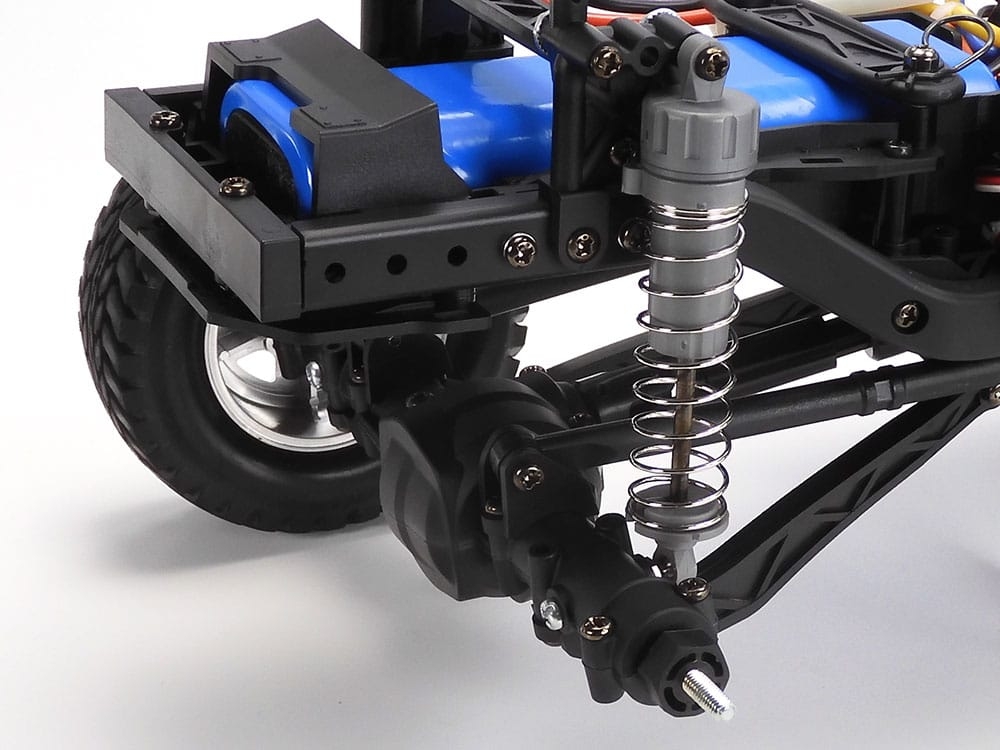

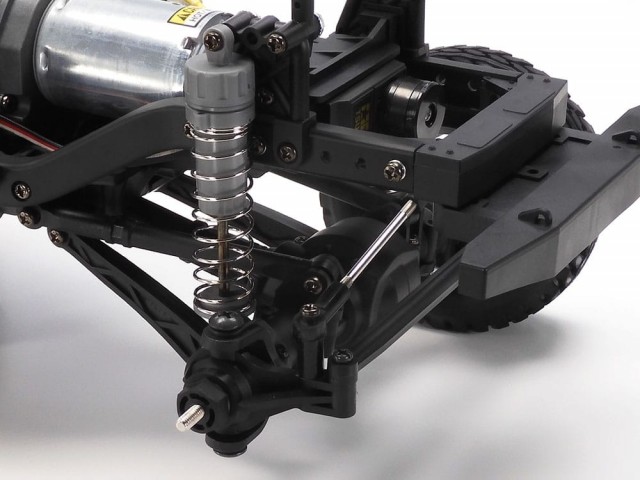

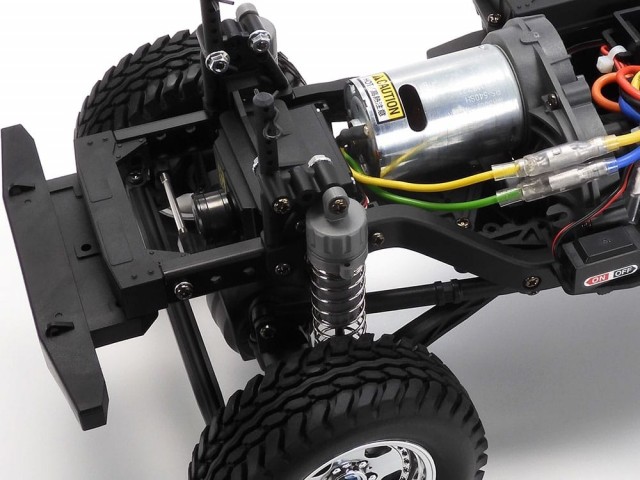

Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with plated five-spoke wheels and grippy block pattern tires, and is setup for the 242mm S wheelbase.
Specifications
★Length: 395mm, width: 196mm, height: 215mm
★Wheelbase: 242mm
★Tread: 160mm (front), 163mm (rear)
★Tire width/diameter: 33/90mm (front & rear)
★Ladder frame ★Longitudinal motor, shaft-driven 4WD
★3-bevel differential gears
★4-link rigid suspension (front & rear)
★Gear ratio = 17.33:1 (using kit-standard 16T pinion)
★Type 540 motor
★Contact your local Tamiya Agent regarding the ESC
Separately Required Items
★2-channel R/C system and ESC.
★R6/AA/UM3 batteries for transmitter
★Battery pack & charger
