Relansering av klassikeren Thunder Dragon som først ble utgitt i 1988-tallet. Har firehjulsdrift og gode off-road kjøreegenskaper. Modellen leveres med lakkert body og en kraftig børstemotor.
Behøves utenom som ikke er inkludert:
2-kanals fjernkontroll og mottaker
7.2V Ni-Mh batteripakke og lader
Farstregulator (ESC)
Styreservo
Superlim (CA Lim)
Spesifikasjoner:
RC bygggesett
Chassis type: Vintage
Skala: 1/10
Lengde: 39 cm
Bredde: 24 cm
Høyde: 13,9 cm
Terreng: Off-Road
Drift: 4WD Firehjulsdrift
Fartsregulator (ikke inkludert)
Batteripakke: 7,2V Ni-Mh med Tamiya-kontakt (ikke inkludert)
Motor: Børstemotor (inkludert)
Lakkert body
Lakk/maling anbefalt av Tamiya:
PS-12 Silver
XF-1 Flat Black
XF-15 Flat Flesh
Informasjon fra Tamiya:
Thunder & Flame

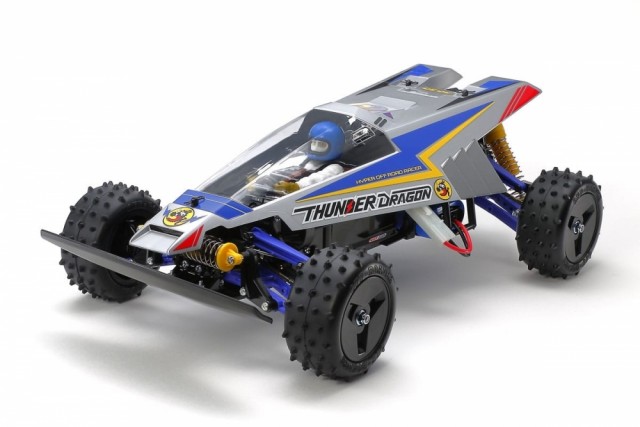

This assembly kit creates an updated re-release version of the classic R/C off-road buggy Thunder Dragon, which appeared in a Japanese cartoon in the 1980s. Its ABS bathtub frame is tough and allows easy maintenance, while 4-wheel double wishbone suspension uses CVA oil dampers and a front stabilizer for a superior ride. Sealed gearboxes front and rear contain differentials with die-cast 3-bevel types for smooth, superior handling feel, and semi-pneumatic spike tires give great grip. The streamlined body is molded in polycarbonate, with non-canopy sections painted in silver. It is pre-cut for convenience.
Tough Shaft-Driven 4WD

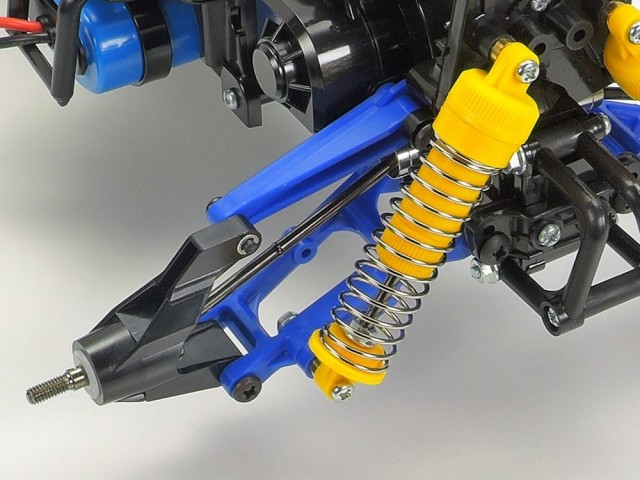

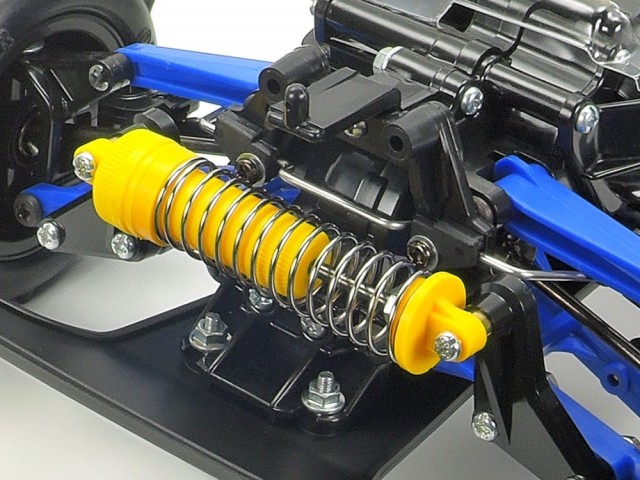

The midship motor, shaft-driven 4WD chassis is based around a lightweight and tough monocoque, with 4-wheel independent double wishbone suspension attached to gearboxes: an easy maintenance layout using upper "I" and lower "H" arms. Dual CVA oil dampers at the rear and a single one in the front monoshock setup are joined by a front stabilizer for optimal flex. Gear differential units front and rear are in sealed gearboxes, and an aluminum motor mount further improves reliability.
Specifications
★Length: 390mm, Width: 240mm, Height: 139mm
★Wheelbase: 260mm
★Minimum ground clearance: 23mm
★Tread: 203mm (front), 194mm (rear)
★Bathtub frame
★Tire width/diameter: 38/83mm (front and rear)
★Shaft-driven 4WD
★3-bevel differential gears (front and rear)
★3-piece steering tie-rod
★4-wheel independent double wishbone suspension
★Gear ratio = 7.68:1
★Type 540 Motor
